Information

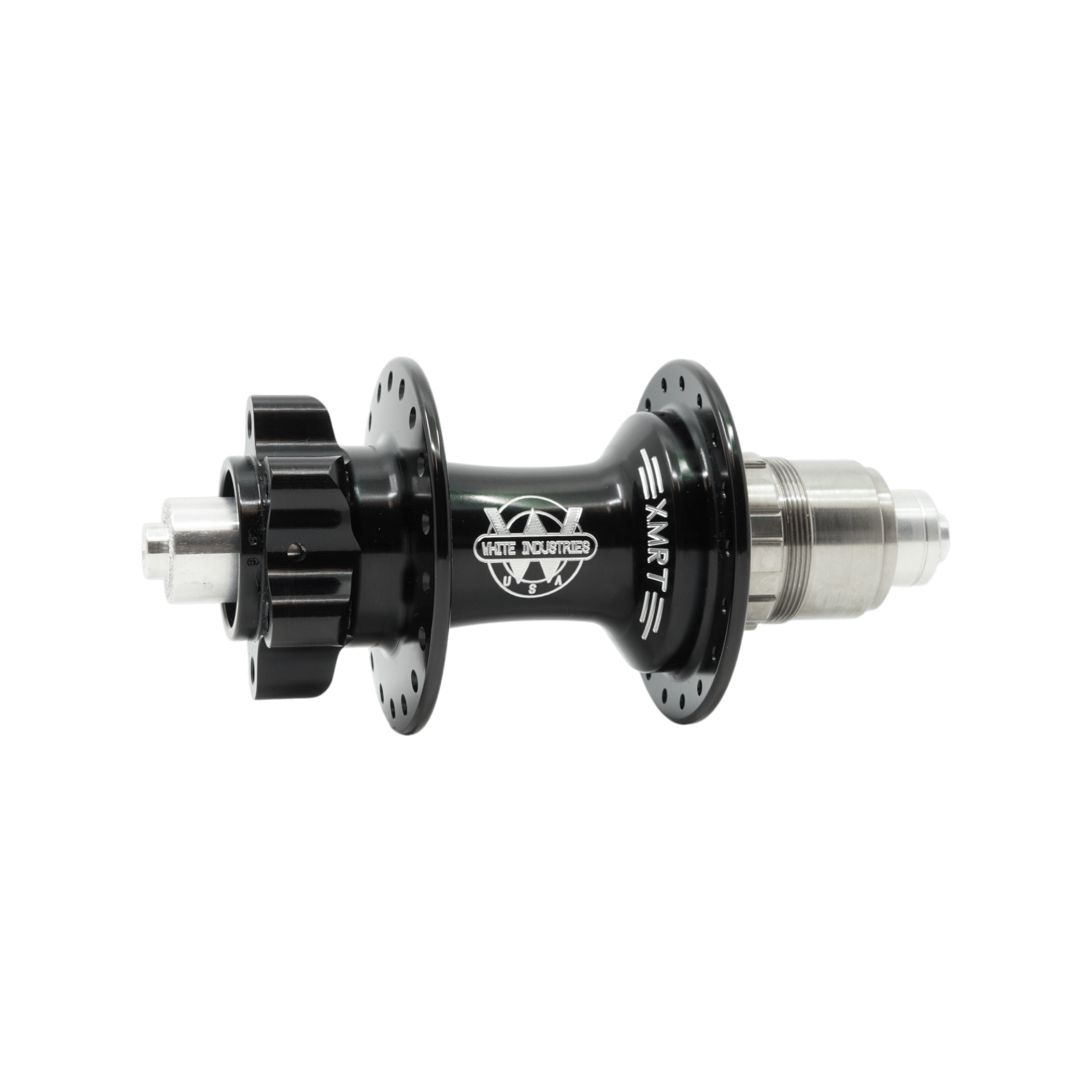

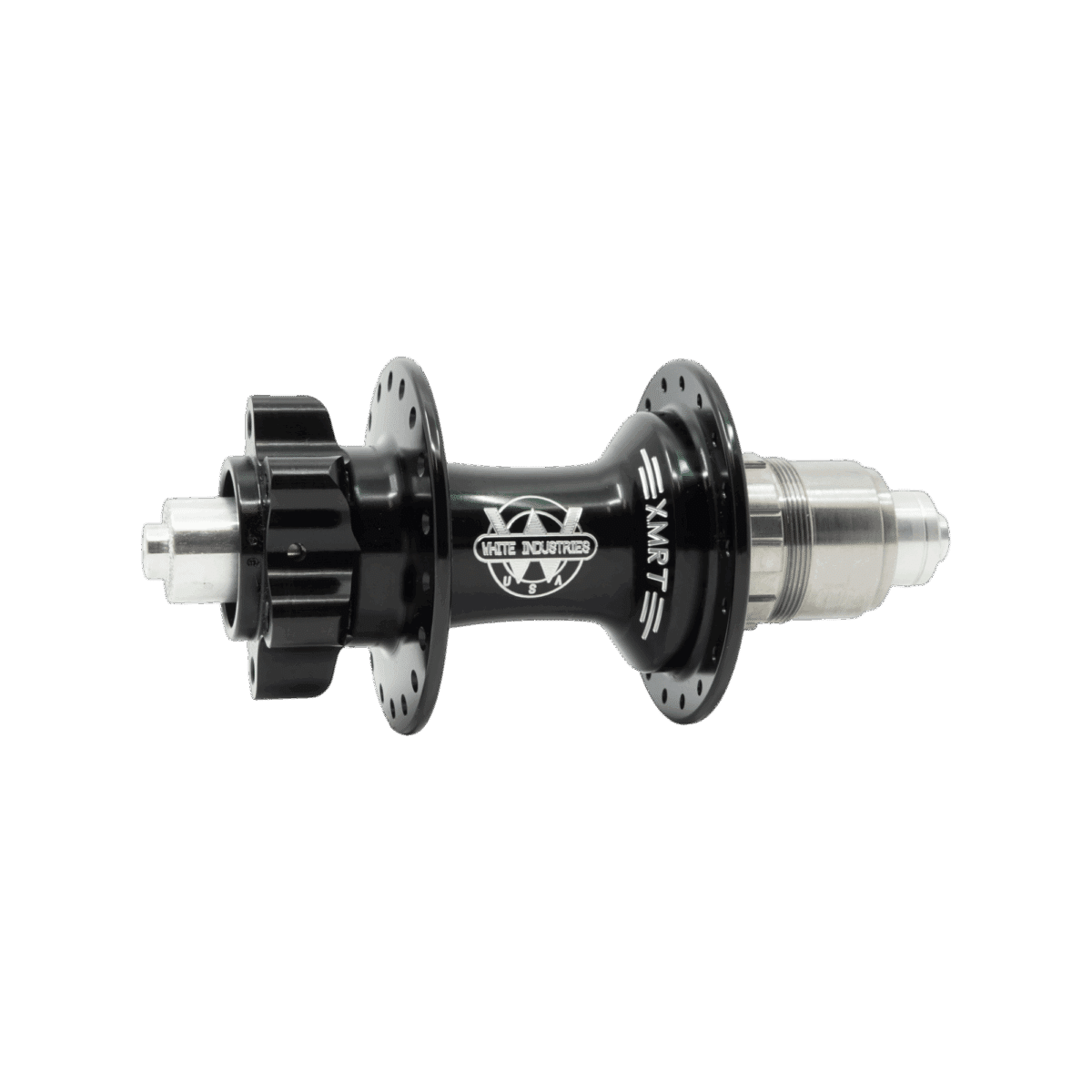

Our XMR T (Cross/Mountain/Road – Tandem) hub is a tandem-specific version of our XMR 6 bolt disc hub. Spaced at the 145mm quick release standard many tandems use, we designed a custom hub shell with tandem-specific flange spacing and a beefed up cro-moly steel axle to handle the extra load. Made in our shop from U.S. sourced 6061-T6 aluminum, they’re available in a range of drillings and 4 different freehub body options.
Features
- U.S. made 6061-T6 aluminum
- Enduro bearings
- 6/4 titanium driver
- 3-pawl, 48 point (7.5 degree) engagement
- Compatible with 6-bolt style rotors
- Cassette spacer included only on XDR freehub bodies
- Available separately for Shimano HG11 (part# SPACER11)
Specs
- 344g
- Drillings: 32, 36, 40, 48
- Axle:
- 10mm x 145mm QR
Bearings
- All Enduro ABEC 5 except 3802W (ABEC 3)
|
Driver Style |
Left hub shell bearing | Right hub shell bearing | Inner driver bearing |
Outer driver bearing |
|
Shimano Hyperglide 11 speed |
61902-LLU/LLB | 61902-LLU/LLB | 3802W LLB |
61902-LLU/LLB |
|
Shimano Micro Spline |
61902-LLU/LLB | 61902-LLU/LLB | 3802W LLB |
3802W LLB |
|
SRAM XD/XDR |
61902-LLU/LLB | 61902-LLU/LLB | 3802W LLB |
3802W LLB |
|
Campy 11 speed |
61902-LLU/LLB | 61902-LLU/LLB | 3802W LLB |
3802W LLB |
Wheelbuilding specs
- Spoke hole diameter
- 2.6mm
|
Left flange diameter |
Right flange diameter | Center to left flange |
Center to right flange |
|
60mm |
60mm | 30.65mm |
23.25mm |
Technical Documents
- Rear Hub Assembly
- Ratchet Ring and Pawl Identification
- Ratchet Ring Removal and Installation
- Freehub Body Identification Guide
