Information

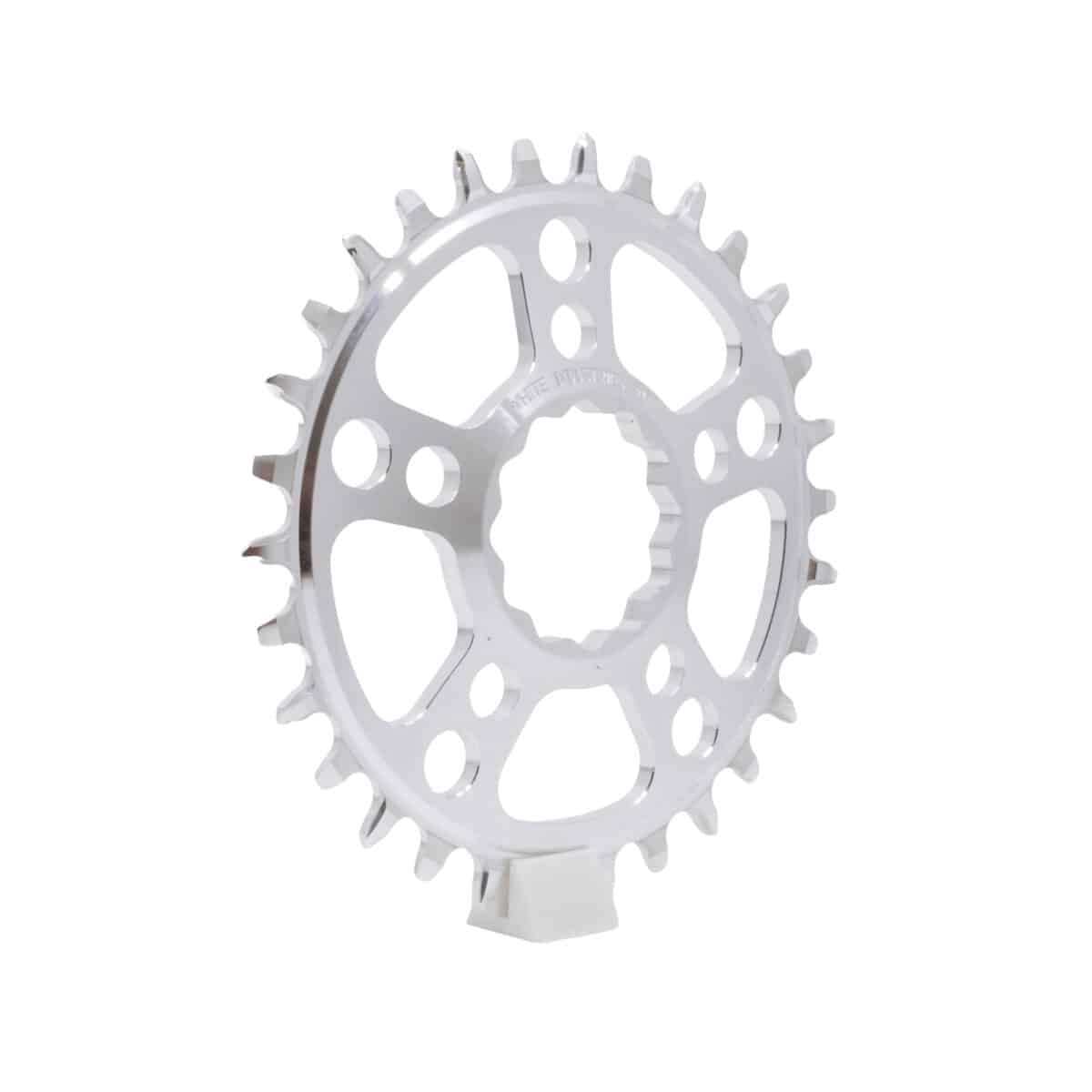

TSR (Tall-Short-Ring) 1X chainrings are designed to work with all modern 10/11/12 speed 1X drivetrain systems. The tall/short tooth profile helps prevent the chain from falling off the ring when riding through rough terrain and is a must on 1x drivetrains but is also compatible with singlespeed drivetrains. Made in our shop from U.S. sourced 7075-T6 aluminum (48-52 tooth rings are 6061-T6).
Features
- MR30 series TSR chainrings fit White Industries M/A/R/G 30mm spindle cranks only
- Works with SRAM 10/11/12 speed and 12 speed flat-top chains
- Works with SRAM 12 speed Eagle Transmission flat-top chains
- Works with Shimano 10/11 speed chains
- Shimano 12 speed chains must use a SRAM Eagle 12-speed PowerLock connector
- Works with singlespeed 3/32 chains

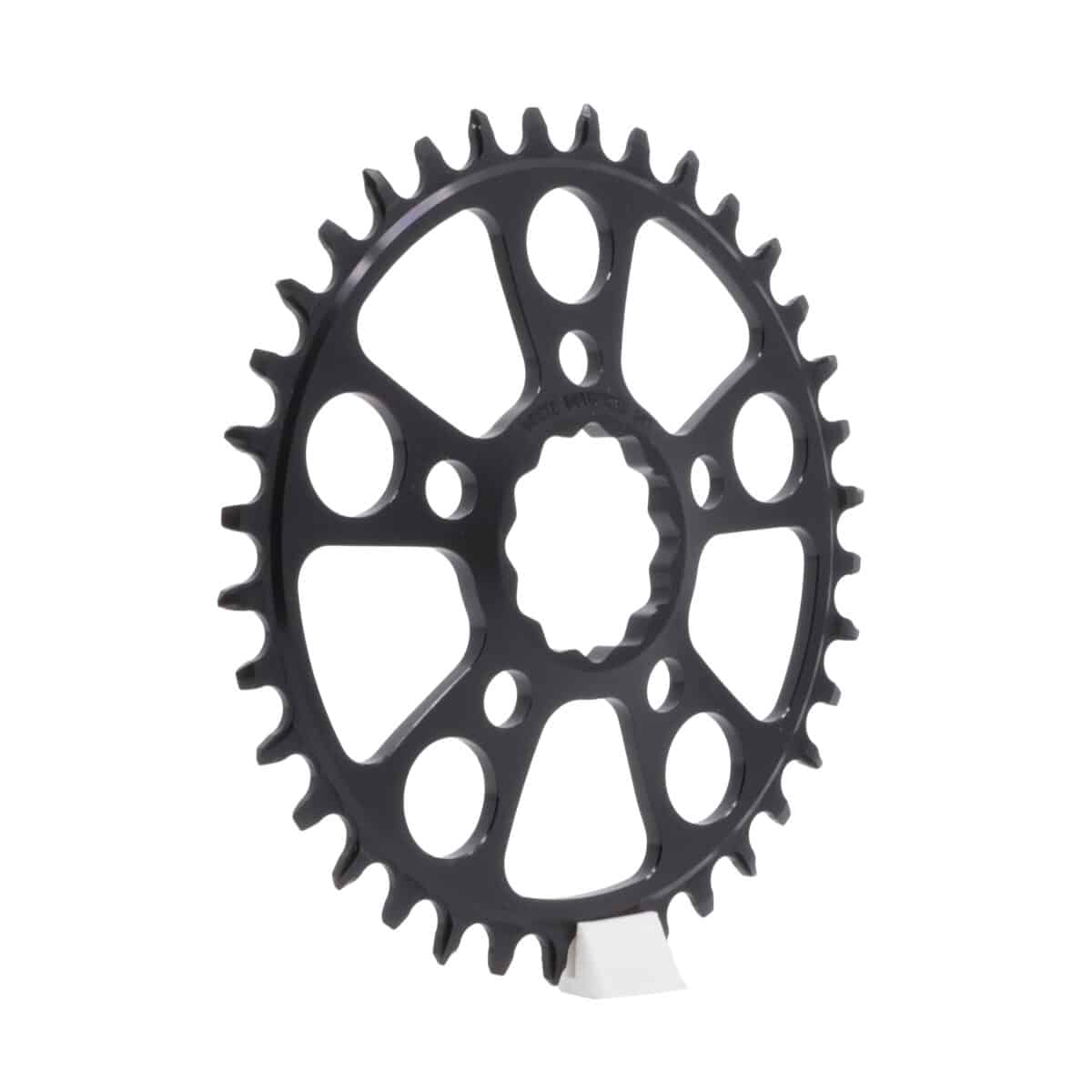

- Available in silver and black
- From 28 teeth to 52 teeth in 2 tooth increments
Specs
- Boost and non-Boost versions
- Standard/non-boost rings have a 3mm offset (inward)
- Boost rings are flat (so 3mm outward of our standard/non-boost rings)
- Standard/non-Boost rings can be flipped to give you 3mm more outward offset than our Boost rings
- Chainlines:
|
Mountain M30 |
Adventure
A30 |
Road
R30 |
Gravel G30 |
|
|
Crank arm |
M30
 Mountain arms |
R30
Road arms |
R30
Road arms |
M30 Mountain arms |
|
Spindle |
M30
Mountain spindle |
M30
Mountain spindle |
R30
Road spindle |
R30 Road spindle |
|
1x chainline (3mm offset ring, facing inward) |
49mm | 49mm | 46.5mm |
46.5mm |
|
1x Boost chainline  (flat ring) |
52mm | 52mm | 49.5mm |
49.5mm |
|
1x chainline  (3mm offset flipped outward) |
*55mm | *55mm | 52.5mm |
52.5mm |
|
2x chainline (between rings) |
47.5mm | 47.5mm | 45mm |
45mm |
*55mm chainline for Rohloff and Super Boost hubs
