Information
Designed to fit our ENO square taper mountain cranks and Square Taper Road cranks, these rings are machined out of a single piece of 7075 T6 aluminum and feature engraved logos.
Specs
- Compatible with:
- White Industries ENO square taper mountain cranks
- White Industries Square Taper Road cranks
- 6/7/8 speed and singlespeed 3/32″ chains
- Tooth profile is “standard”, not “TSR” style for 1x geared systems
- NOT compatible with:
- MR30 series cranks
- Any other brands
- 1/8″ chains
- 9/10/11/12 speed chains
- 7075 T6 aluminum
- Black ano or Raw Silver (not polished or anodized)

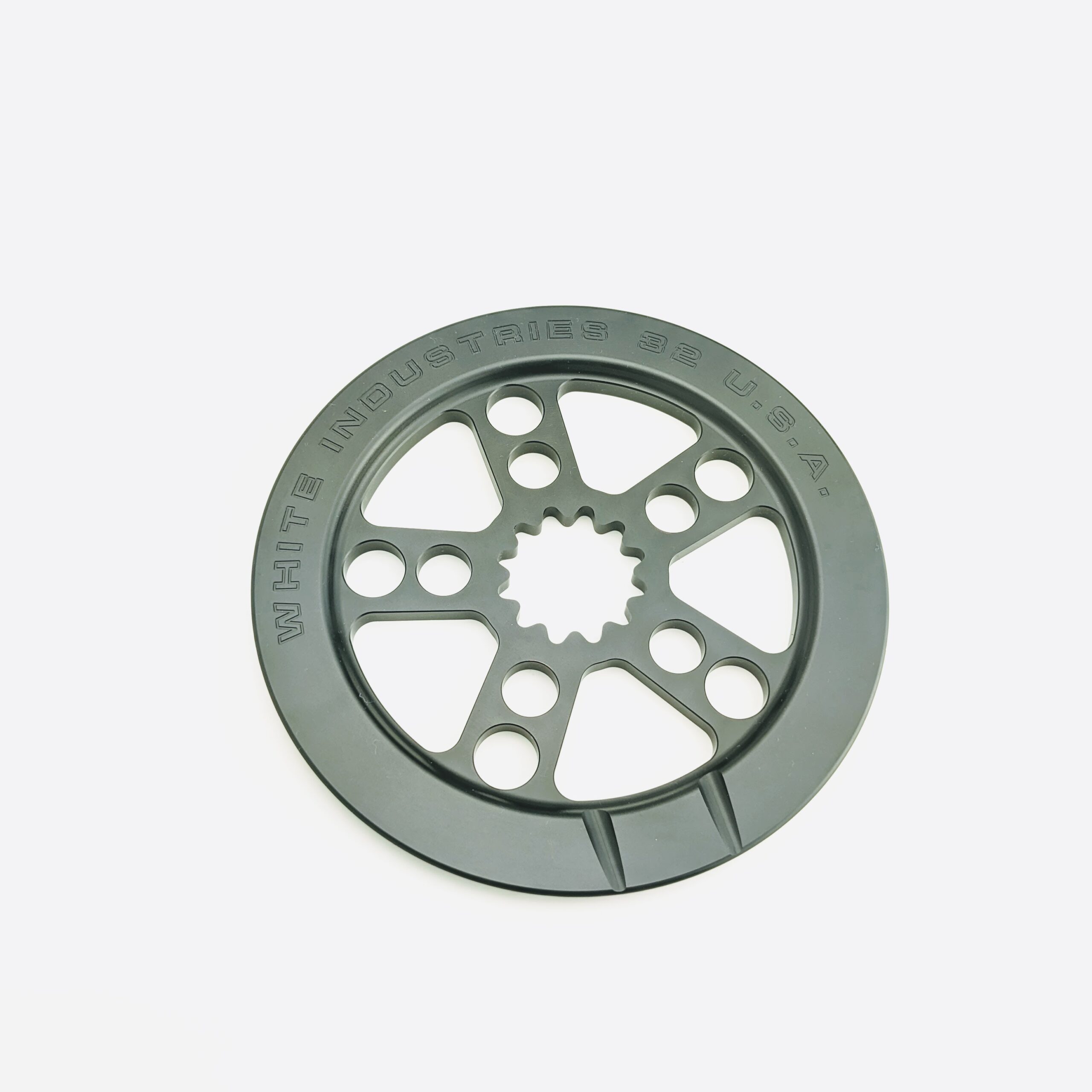

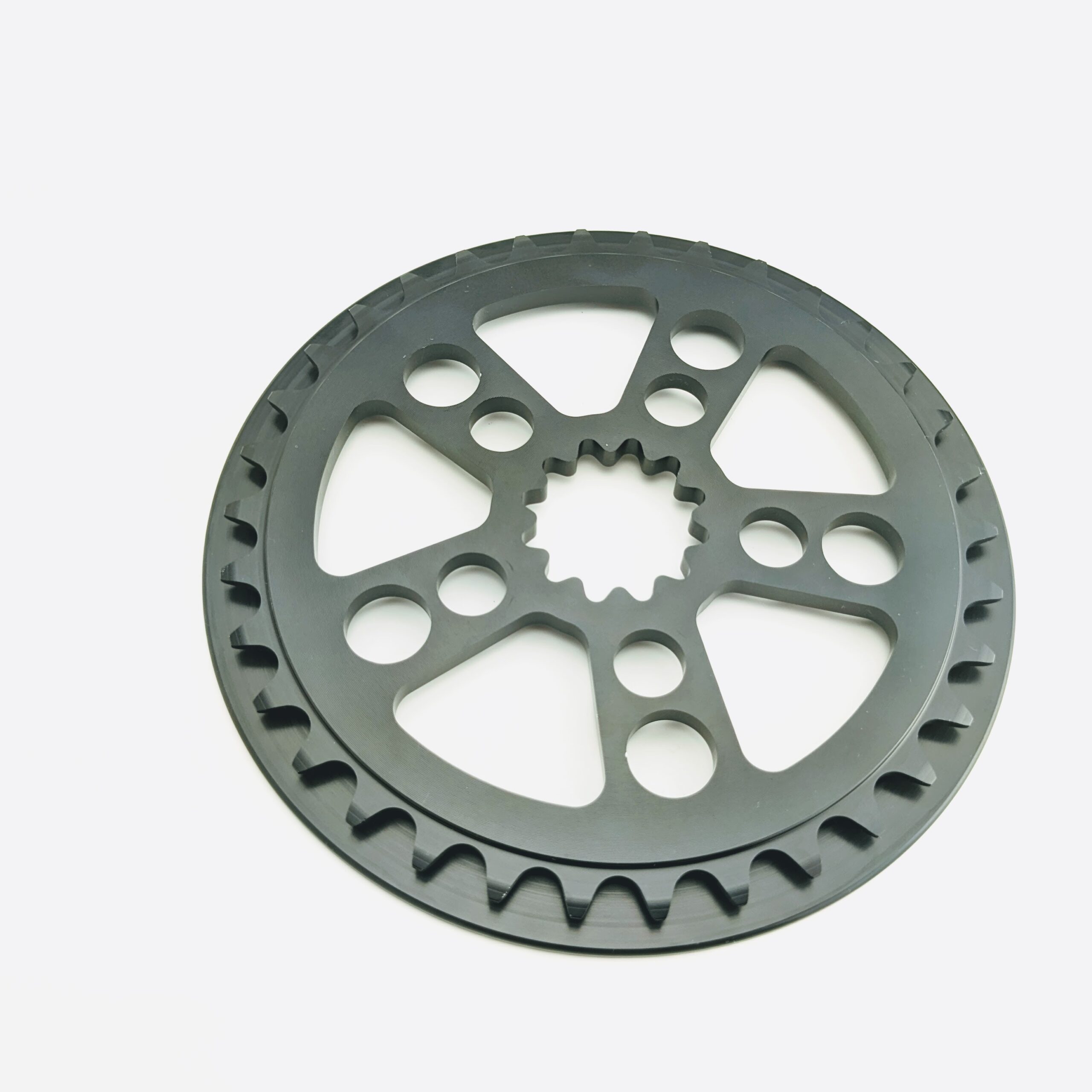

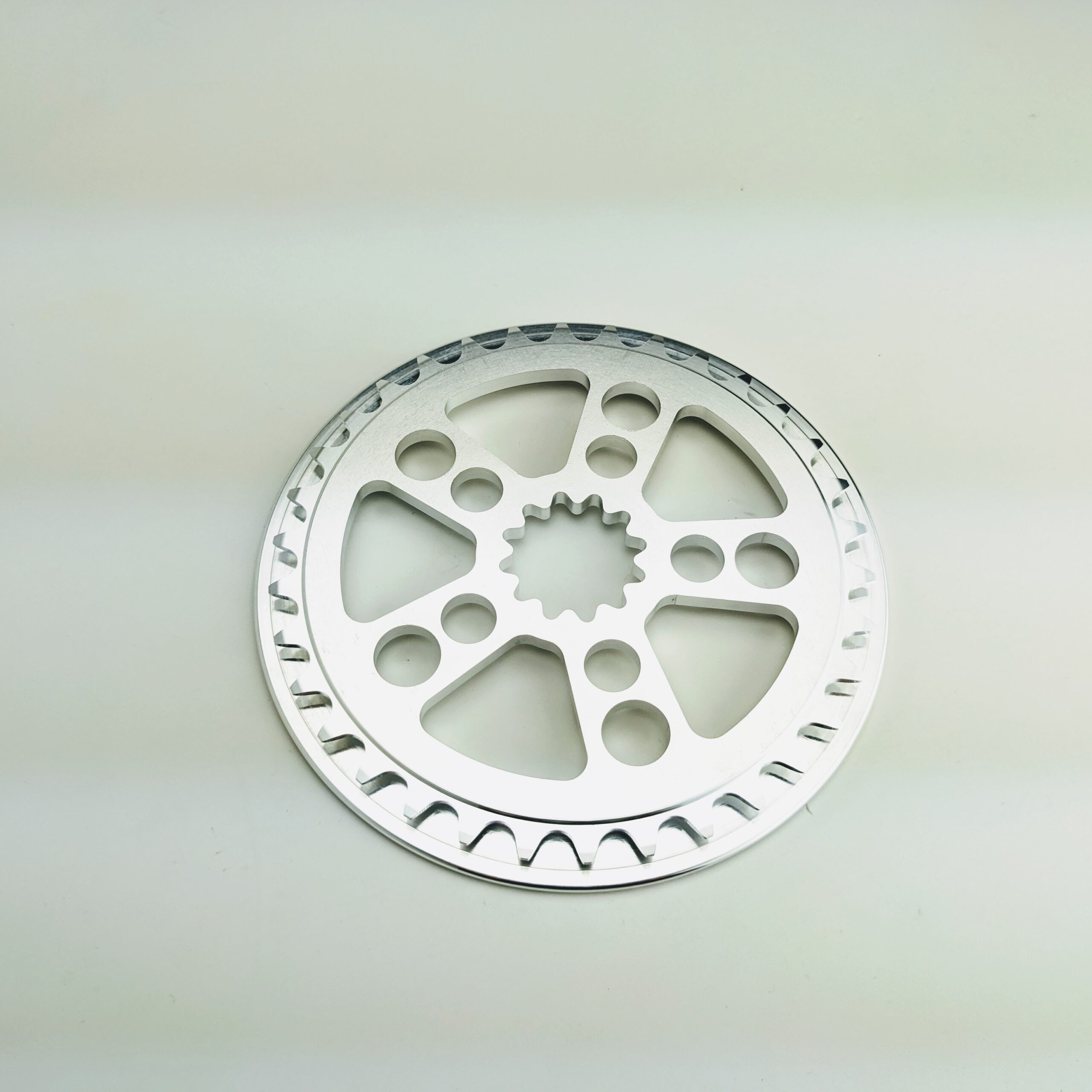

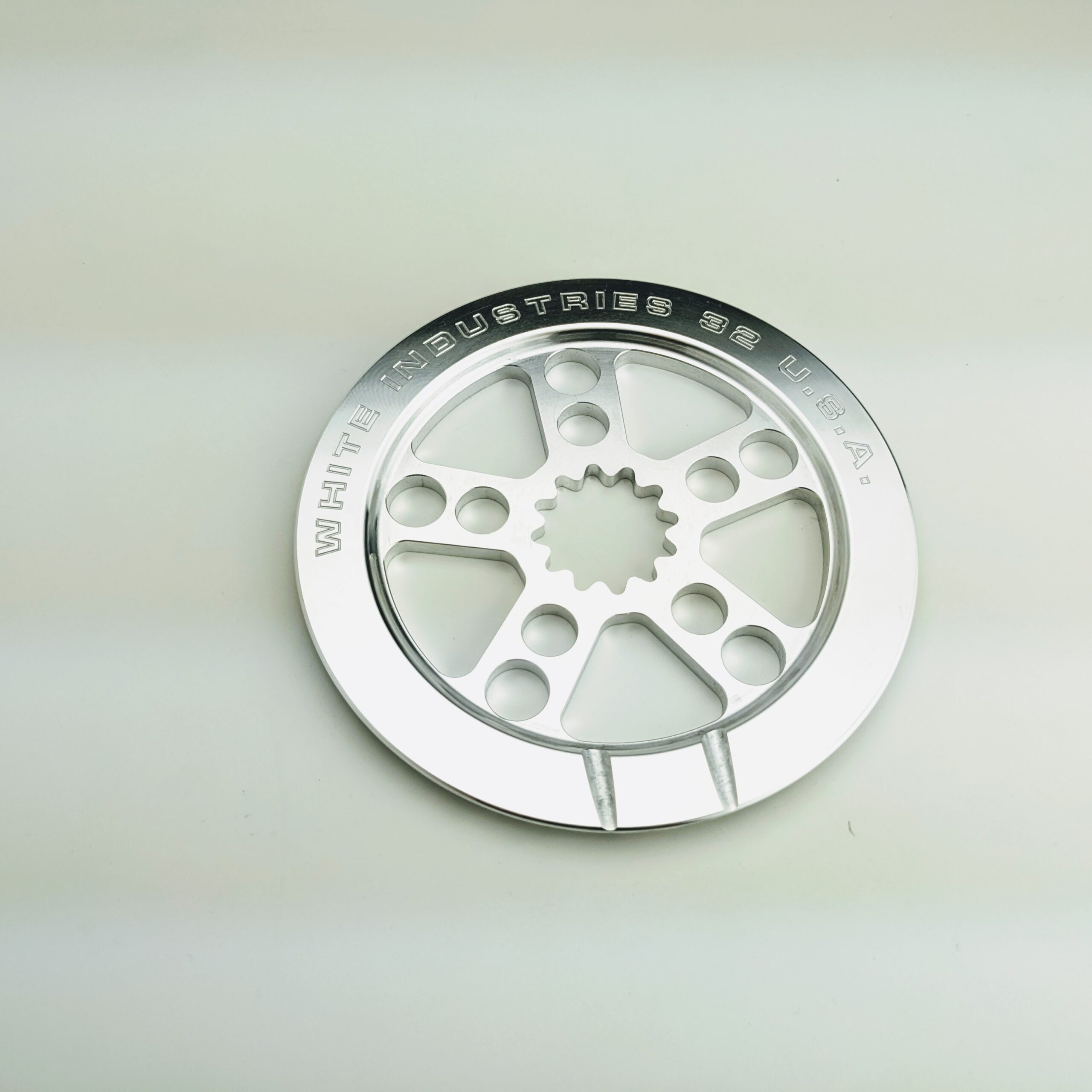

- Bashguard rings:
- 30T
- 32T
- 34T

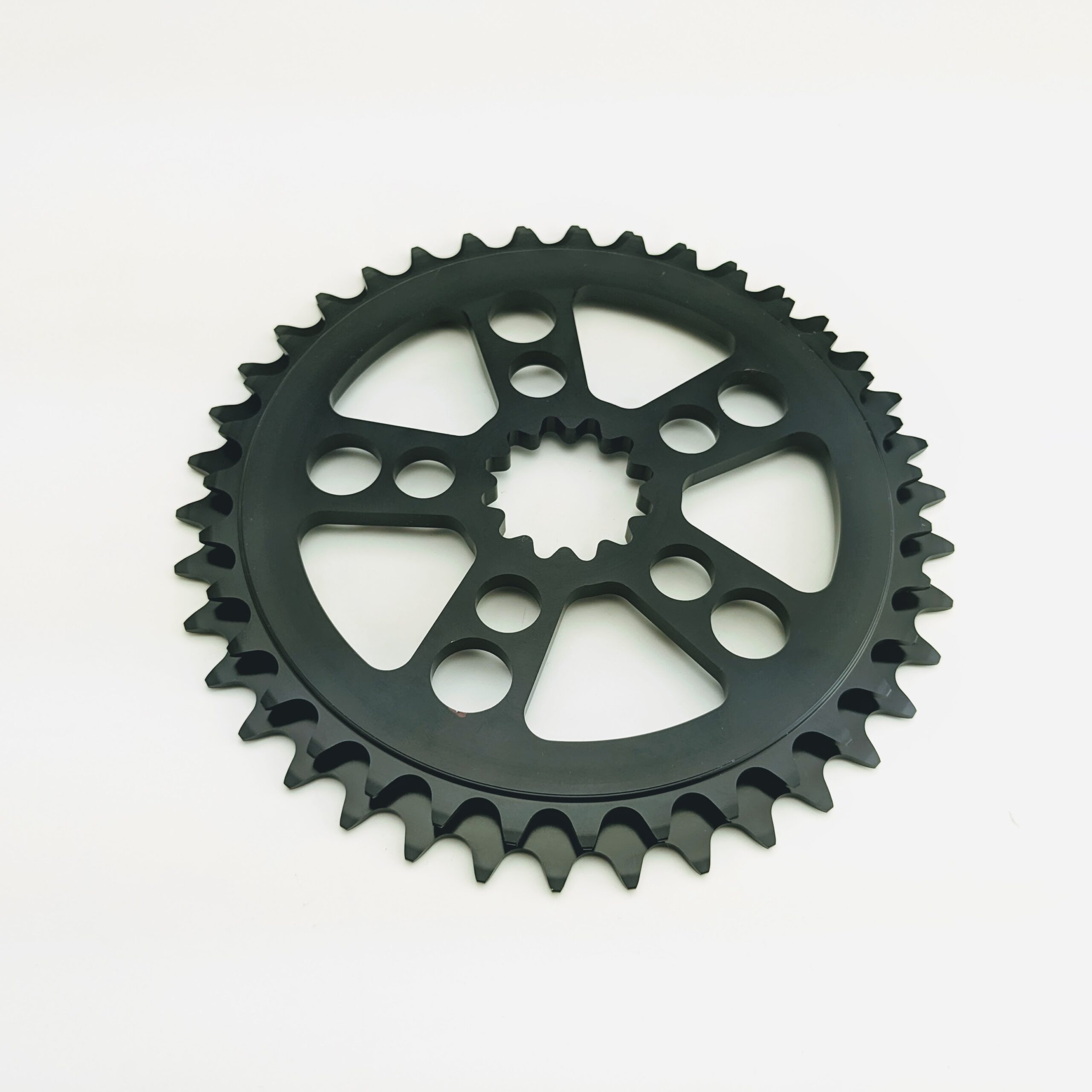

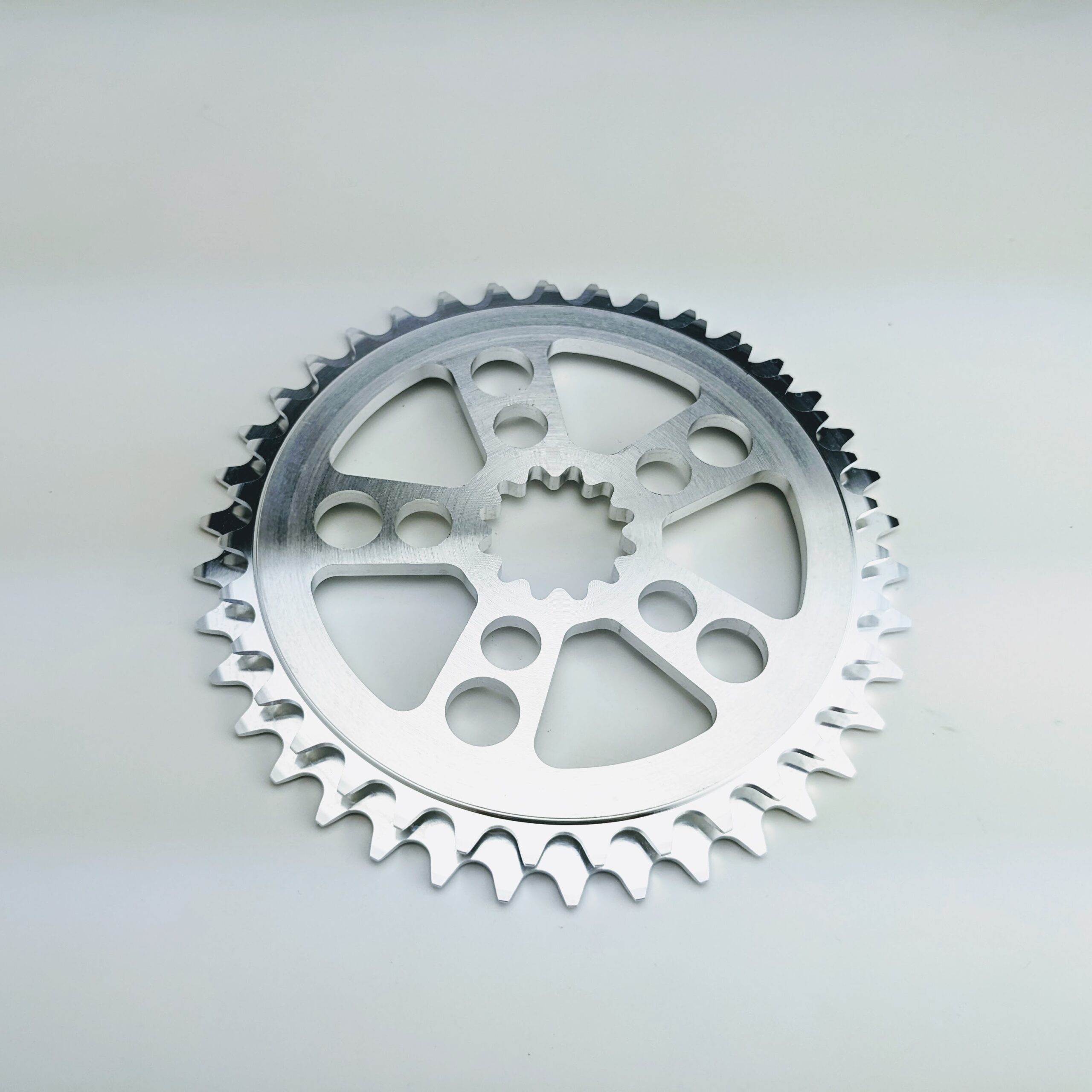

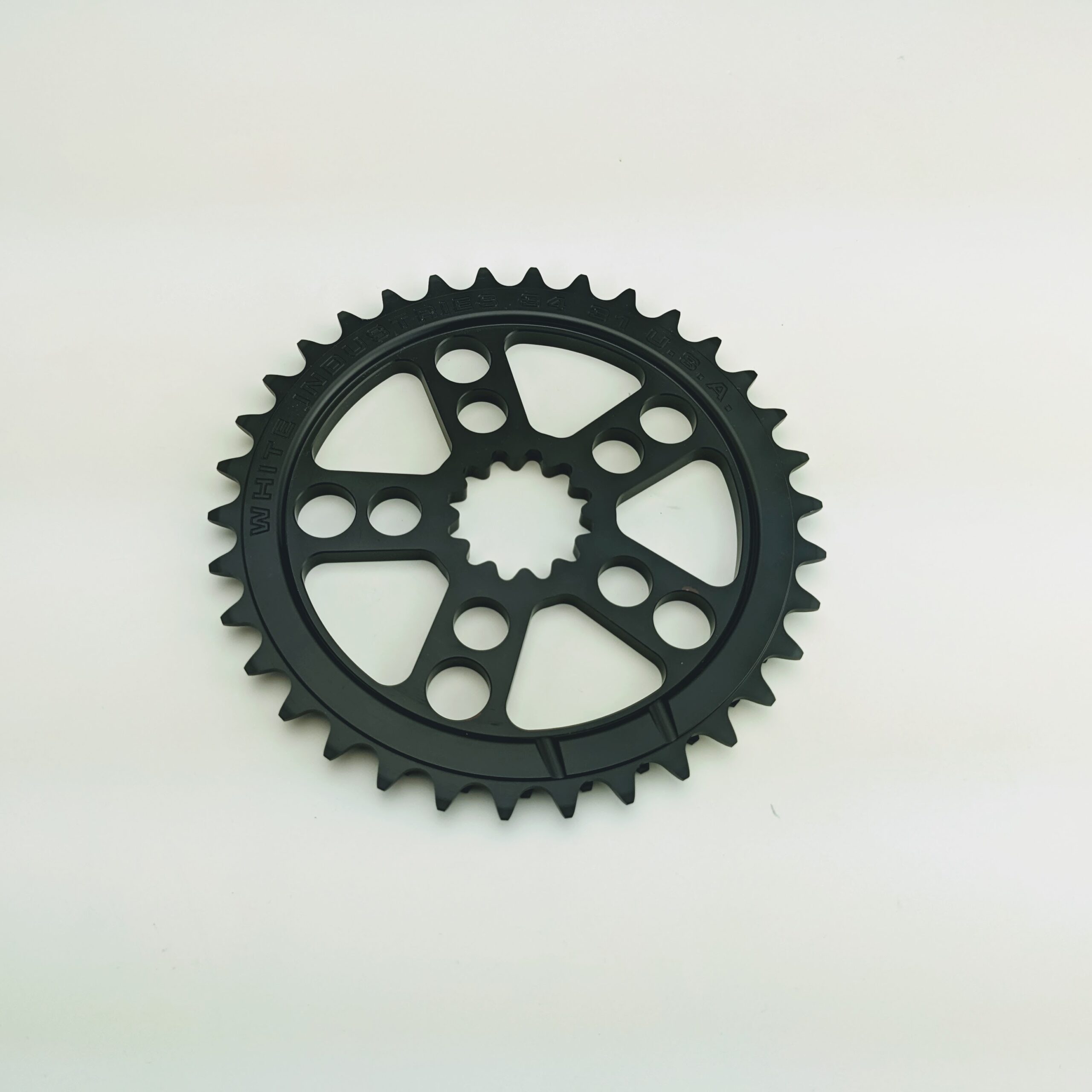

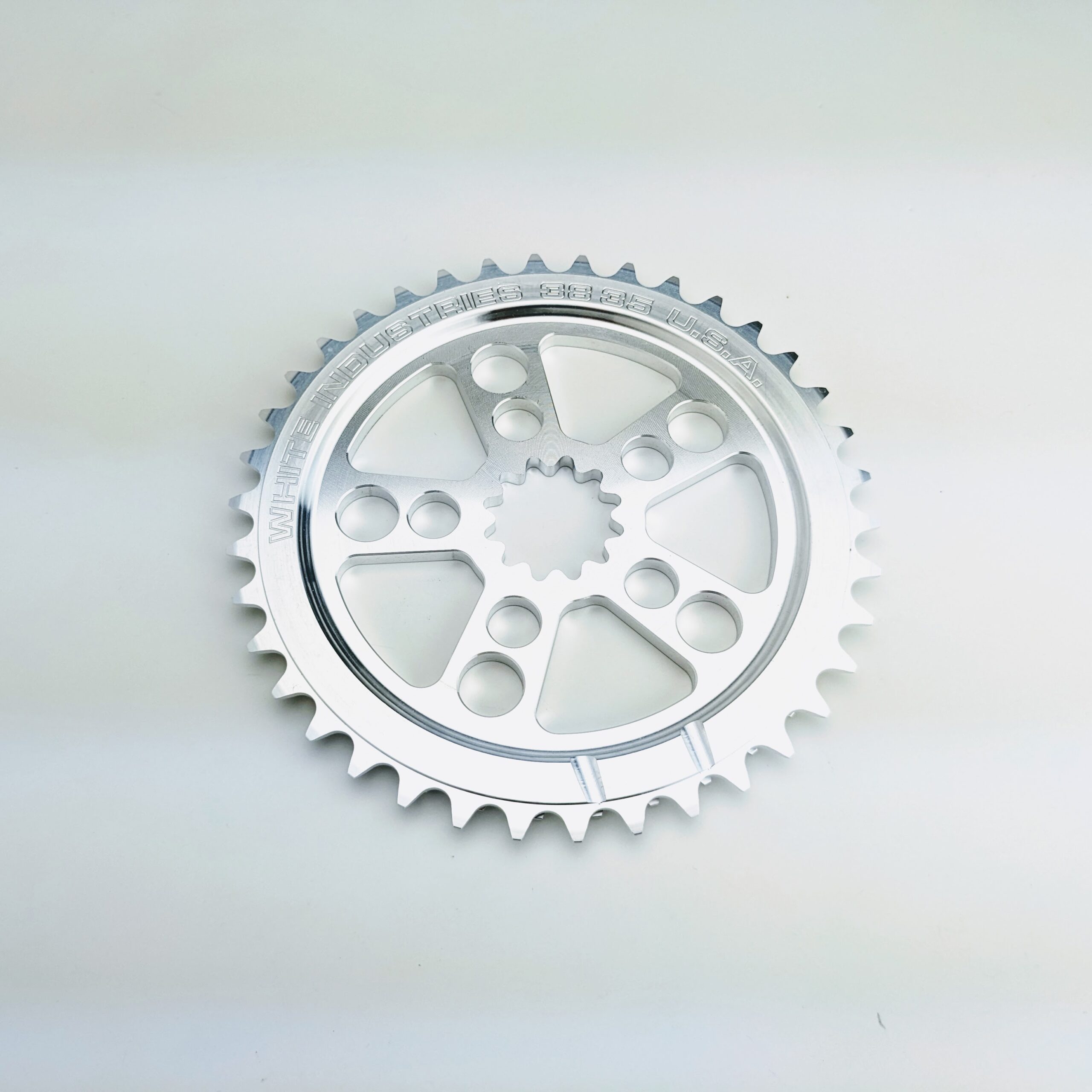

- Double rings:
- 34/31
- 38/35
Chainlines
|
Square taper spindle length  (ENO/ROAD cranks) |
Bashguard Chainlines |
| 108mm | 45mm |
| 113mm | 47.5mm |
| 121mm | 51.5mm |
|
Square taper spindle length  (ENO/ROAD cranks) |
2x Chainring Chainlines |
| 108mm | 45mm/49mm |
| 113mm | 47.5mm/52.5mm |
| 121mm | 51.5mm/56.5mm |
