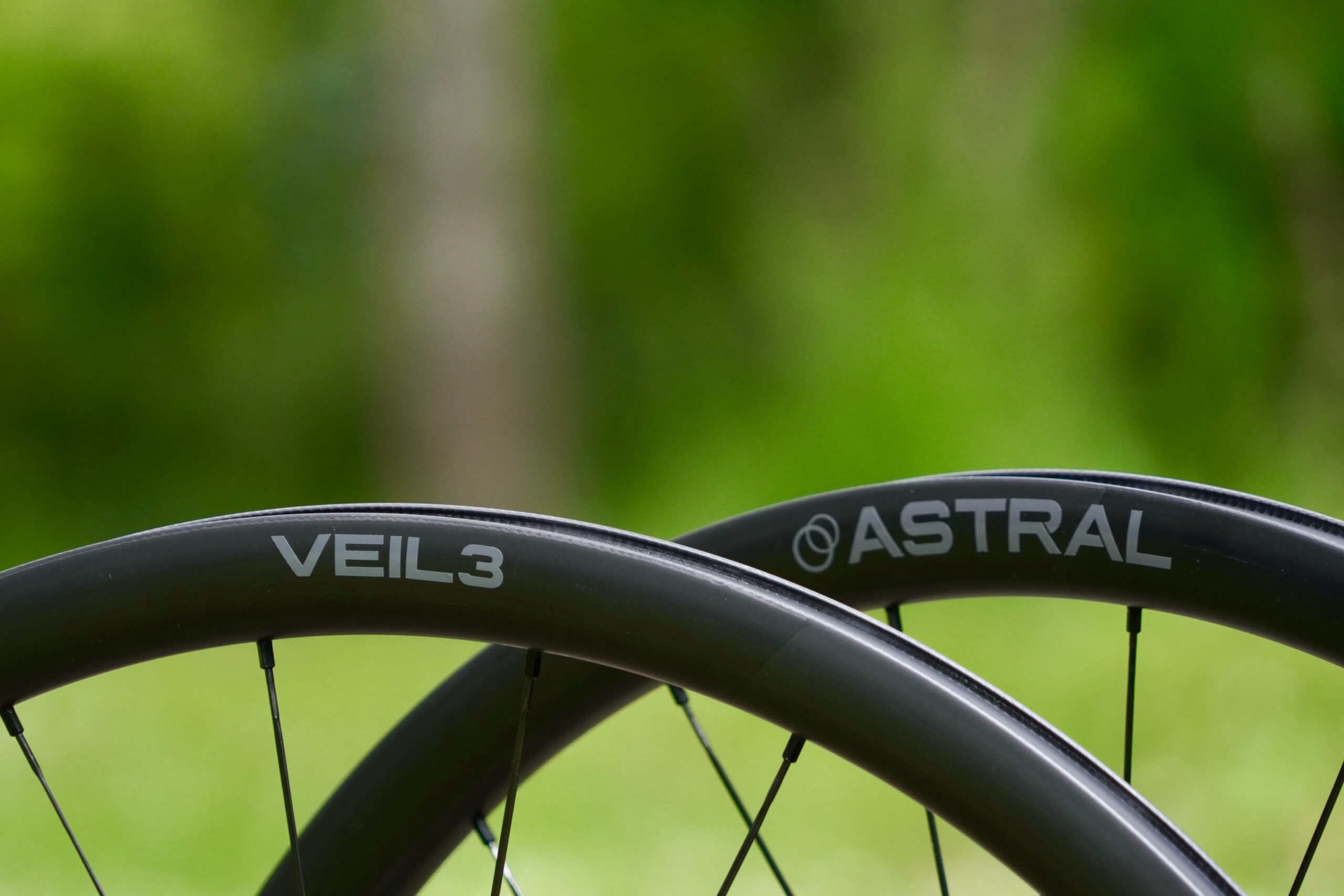

Hand built by our sister company and wheel experts at Astral Cycling in Eugene, Oregon, this wheel set uses our CLD Center Lock disc hubs and Astral’s Veil3 carbon rim. Using traditional “J-Bend” spokes and standard nipples, they represent the best features of a quality wheelset: durability, serviceability, competitive weight, and high quality parts. Think of them as the wheelset your local pro-shop would build from scratch. Hubs are made in our shop from U.S. sourced 6061-T6 aluminum and 6al4v Titanium.
Note: Wheels will drop ship to you from Astral Cycling in Eugene, Oregon, separately from the rest of your order.
Features

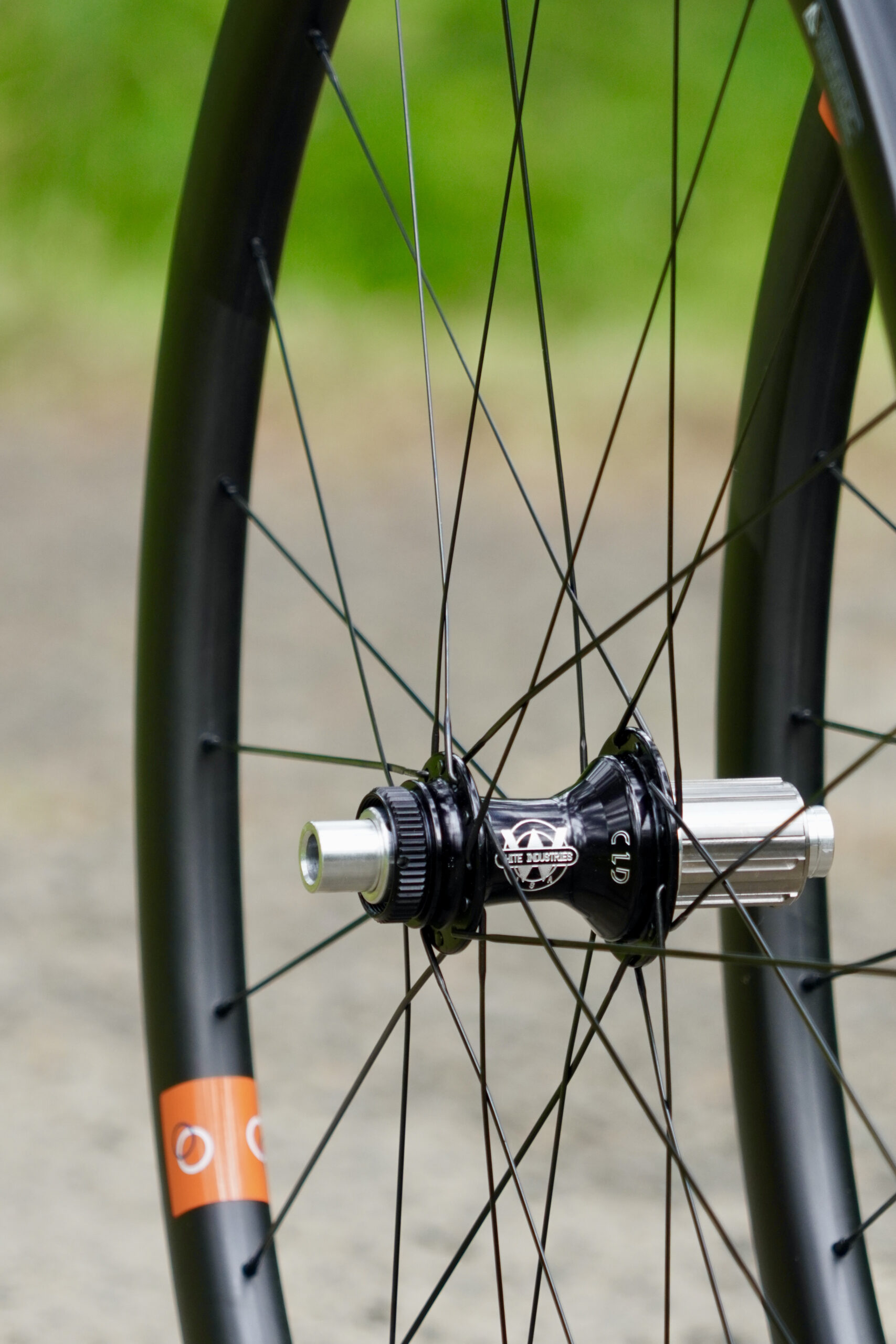

- White Industries CLD Center Lock disc hubs, black
- Astral Veil3 carbon rim (rim brake), black with grey decals
- Sapim CX Ray spokes and nipples, black
- Tubeless compatible for painless tire installation that you can set up with a pump at home
- Includes installed rim strips only, no valves
- Skewers and/or Thru axles not included
- Fits 20c to 32c tires
Specs
- All black parts
- 700c carbon clincher – disc brake
- Symetric rim
- Tubeless compatible
- Rim Depth: 32mm
- Rim Width: [ex] 27mm, [in] 19mm
- Weight: 1450g
- Brake type: Disc brake
- Spoke count: 24/24
- Spoke type: Sapim CX Ray, J-bend
- Lacing pattern: 2x front and rear
- Nipples: Sapim aluminum
- Hubset: White Industries CLD
- Front axle: QR 9mm x 100mm, 12mm Thru x 100mm, or 15mm Thru x 100mm
- Rear axle: QRÂ 10mm x 135mm or 12mm x 142mm Thru
- Freehub options: Shimano HG11, Shimano Micro Spline, SRAM XD/XDR, Campy 11, Campy N3W
- Campy 11 fits Campy 9/10/11/12 speed cassettes
- Campy N3W fits Campy 13 speed cassettes
- Campy N3W will fit 11/12 speed cassettes with Campy adapter/part #AC21-N3W
- Freehub material: CNC Machined 6al4v Titanium
- Bearings: Enduro ABEC5 carbon steel
- Front: 2x 17287
- Rear: Shimano HG11: 3x 6902, 1x 3802W
- Rear: All other drivers: 2x 6902, 2x 3802W
- Spoke lengths
- Front: 282mm left/282mm right
- Rear: 282mm left/280mm right
